Internal Identity Provider Configuration: LDAP

Lightweight Directory Access Protocol (LDAP) serves as a important Identity Provider (IDP) in enterprise environments. It authenticates and authorizes users, facilitating seamless access to resources. LDAP is commonly used as a directory service for managing user identities and authentication information within an organization.

LDAP can be utilized in Cymmetri as an Identity Provider (IDP), leveraging existing user accounts to access Cymmetri, as the platform supports the LDAP protocol.

For configuring LDAP as an Identity Provider one of the primary service needed is the Adapter Service.

The Adapter Service

The Adapter Service or Auth Adapter Service is exposed as a rest service which runs on https acts as an adapter to facilitate authentication using the LDAP protocol which is often employed for authentication purposes in various systems and every adapter service instance is called by the secret generated while installation/configuration of adapter service.

The rest endpoints are called by cymmetri-cloud AuthenticationService to connect to On-Prem AD/Ldap or cloud AD/Ldap. The AdaptorService is used to test connection, authenticate, change, reset password of an user.

Configuration

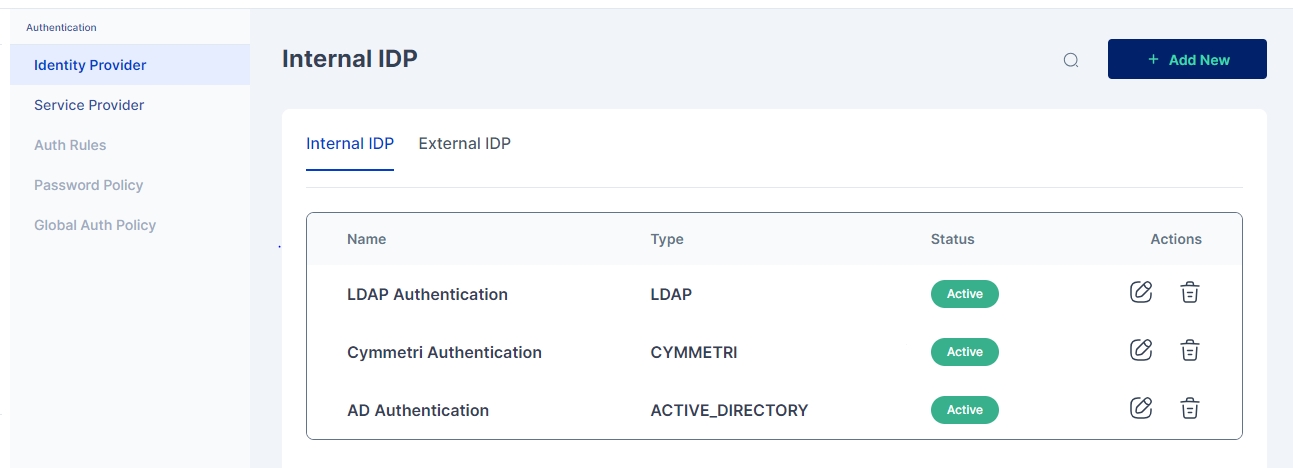

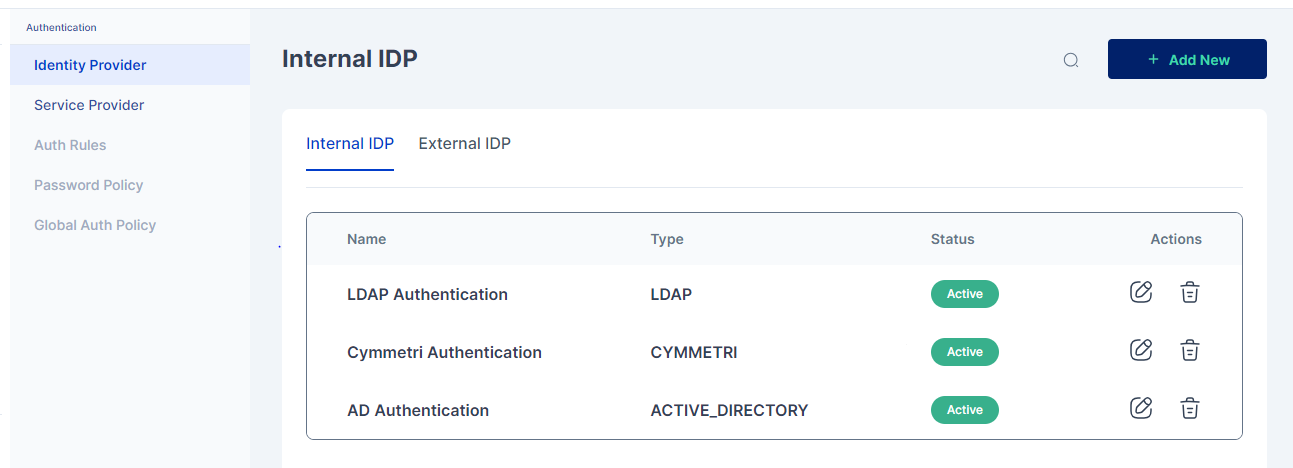

For configuring Active Directory as an internal IDP navigate to Authentication -> Identity Provider -> Internal IDP. Here you may either configure the already created LDAP Authentication instance or +Add New

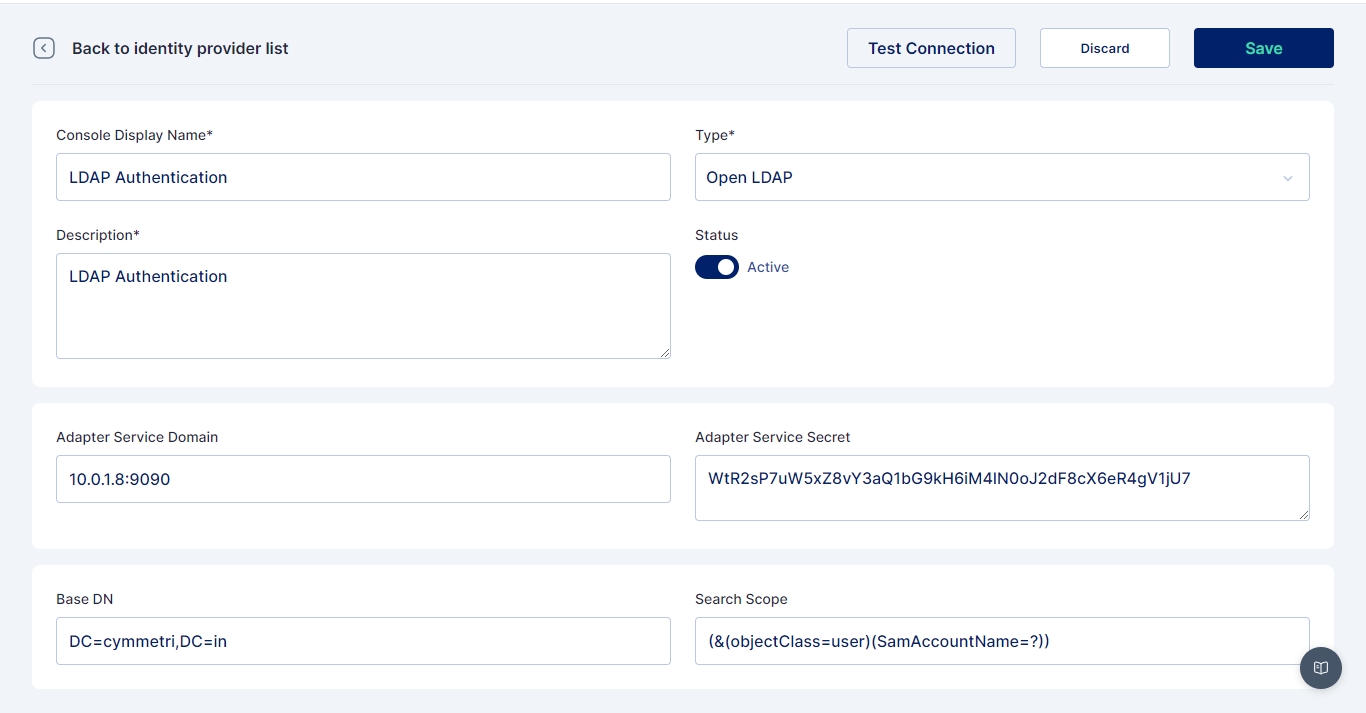

In either cases a screen opens where you need to provide the below mentioned details

  • Name: LDAP Authentication

  • IDP Type: Open LDAP

  • Description: A general description about the IDP type

  • Status: Active

  • Adapter Service Domain: Location (IP) of the server on which the Adapter Service is deployed

  • Adapter Service Secret: The secret generated while installation/configuration of adapter service

  • Base DN: LDAP root domain name

  • Search Scope: A search scope for locating users in LDAP

Once all the details are entered Save the changes and Test the Connection using Test Connection button.

For enabling Open LDAP to be used as an IDP for specific set of users an Authentication Rule needs to be configured. Here you can see the steps on how to configure Authentication Rules.

Once the rule is configured, whenever a user matches the rule conditions, their credentials are verified against those stored in LDAP. Upon successful verification, the user is granted access to log in to Cymmetri.
